| Brand Name : | SMART AUTOMATION |
| Model Number : | OEM |
| Certification : | CE |
| Supply Ability : | 10000 Piece/Pieces per Month |
| Price : | To be negotiated |
| Delivery Time : | To be negotiated |
| Payment Terms : | D/A, T/T, L/C,D/P |
56JXE450k.57BL 12v 24v brushless dc 5nm 10nm 20nm 30nm BLDC gear motor, low price high torque
56JXE450K.57BL Series Brushless Dc Planetary Gear Motor Specification
( Rated Torque Upto 45N.m)
56JXE450K Gearbox General Specification:
*Higher Rated Torque Version Gearbox
| Ring Materials | Metal |
| Bearings | Ball Bearings |
| Max. Radial Load (12mm from flange) | 400N |
| Max. shaft Axial Load | 120N |
| Radial Play of Shaft | 0.08mm max. |
| Axial Play of Shaft | 0.4mm max. |
| Backlash at No load | 1.5 degree max. |
| Shaft Press Fit Force | 300N max. |
56JXE450K.57BL Series Planetary Gear Motor Specification:
56JXE450K.57BL Series Planetary Gear Motor Specification:

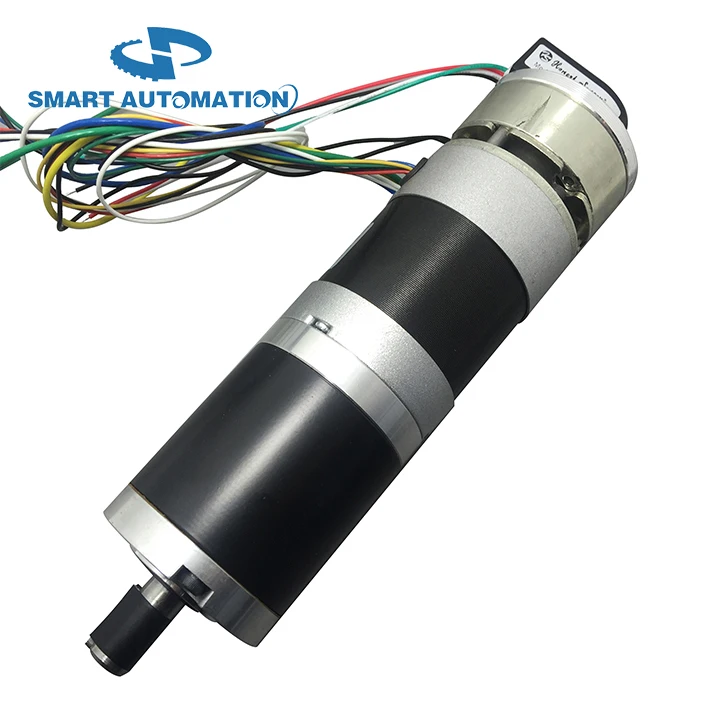

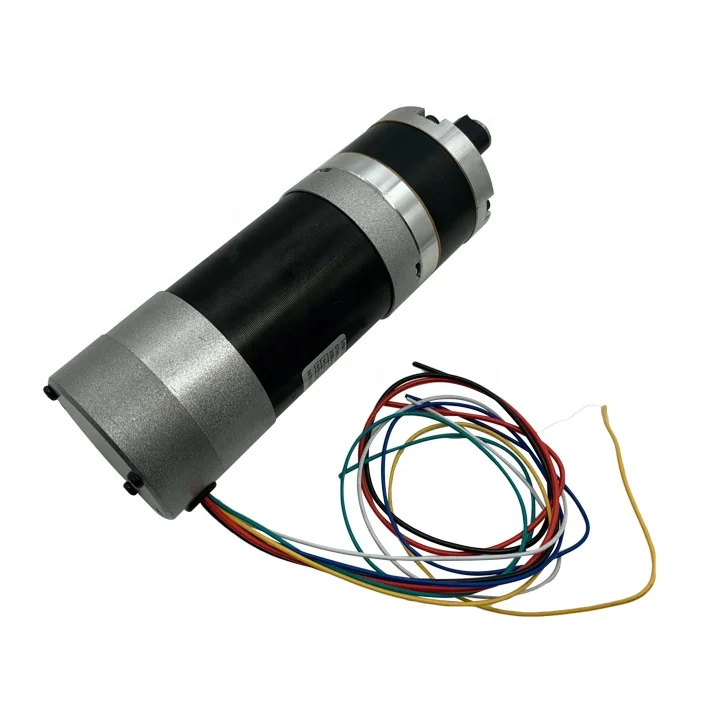

MOTOR PICTURE
OPTION FOR BRAKE AND ENCODER
|
